EDT22S Manual Dispensing Tool for 22 oz. Cartridges

EDT22S Manual Dispensing Tool for 22 oz. Cartridges

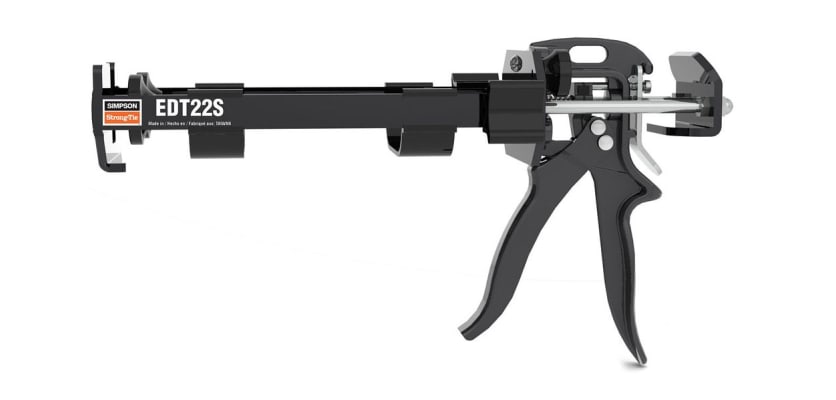

The Simpson Strong-Tie® EDT22S Manual Dispensing Tool is a heavy-duty, professional-grade applicator gun specifically engineered for 22 oz. side-by-side epoxy cartridges. Built to handle the thick, high-viscosity nature of structural adhesives, this epoxy gun is the essential partner for large-scale anchoring projects where power and durability are required. It is designed to withstand the rigors of the job site, providing the high-pressure output needed to ensure a perfect chemical mix every time you pull the trigger. It is the definitive choice for contractors who need a reliable, manual solution for high-volume structural reinforcement.

Advanced Mechanical & Design Specifications

• High-Thrust Power: This tool features a powerful 26:1 mechanical advantage ratio. This means it multiplies your hand strength significantly, allowing you to dispense thick, high-solids epoxy with much less physical effort than a standard caulking gun.
• Dual-Ratio Versatility: The EDT22S is uniquely convertible, designed to accommodate both 1:1 and 2:1 ratio cartridges. By simply swapping the internal hardware, you can use it for the newest SET-3G™ formulas as well as traditional ET-HP® adhesives.
• Rugged Steel Construction: Engineered for longevity, the tool is built with a reinforced steel carriage and high-strength drive rods. This rigid design prevents the frame from flexing or bending under the intense pressure required for deep-hole injection.
• Anti-Slip Drive System: Equipped with double-gripping plates and a heat-treated drive rod, the mechanism ensures a smooth, consistent flow of material. This prevents the "slipping" common in lower-quality tools and ensures an accurate, non-stop application.
•

• Recommended Implementations

• High-Volume Commercial Anchoring: The perfect companion for large projects requiring dozens or hundreds of anchors. Its heavy-duty build allows for continuous use across expansive foundation slabs, parking structures, and industrial floors.
• Structural Seismic Retrofitting: Ideal for installing the large-diameter threaded rods and rebar needed for earthquake reinforcement.
• Infrastructure & Bridge Work: Built to handle the tough conditions of civil engineering projects. Whether you are anchoring bridge railings or highway barriers, this tool provides the consistent pressure needed to fill apertures correctly in any weather.
• Marine & Waterfront Projects: Because it is a manual tool, it requires no batteries or hoses, making it the perfect choice for piers, docks, and remote locations where moisture and salt air might compromise electronic equipment.

Caution: Always ensure the tool is configured for the correct mix ratio (1:1 or 2:1) to match your specific cartridge before use. To maintain peak performance and prevent the drive rod from sticking, wipe away any excess epoxy from the tool immediately and keep the moving parts lightly lubricated with a general-purpose oil.
