Aluminum Commercial 2 Rail Flat Top Drive Gate Pair 8' Wide x 36" High
Product Description
Aluminum Commercial 2 Rail Flat Top Drive Gate Leaf Pair 8' Wide x 36" High

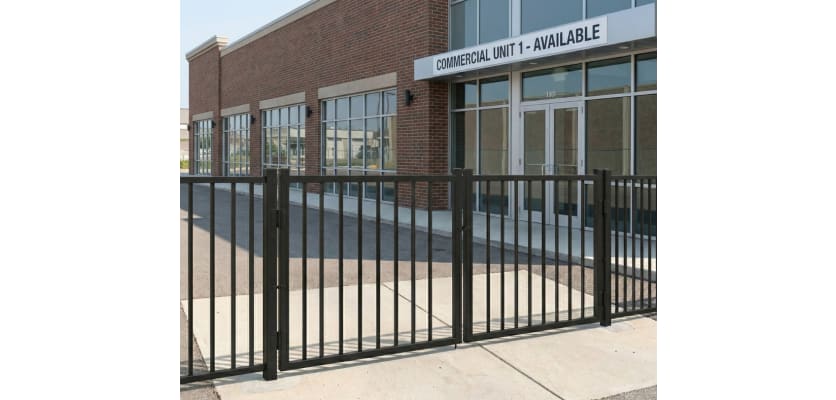

The Aluminum Commercial 2 Rail Flat Top Drive Gate Leaf Pair (8 feet total opening width by 36 inches high) is a robust and sophisticated solution for managing vehicular access at commercial properties, municipal parks, and corporate campuses. This double gate configuration is composed of two 4-foot leaves that swing inward or outward to create an 8-foot clear opening. This width is ideal for single-lane access roads, maintenance paths, and pedestrian plazas that require occasional vehicle entry. The 36-inch height offers a distinct boundary that guides traffic effectively without obstructing sightlines, maintaining an open and inviting atmosphere that is critical for retail centers and public gardens. The 2-rail flat top design provides a clean, modern silhouette that lacks sharp edges, ensuring safety for pedestrians and reducing liability in public-facing environments.
Heavy-Duty Commercial Specifications
Designed to endure the demands of high-traffic environments, this gate is manufactured from commercial-grade aluminum alloy. It features substantial 3/4 inch by 3/4 inch pickets in 18 gauge thickness and heavy-duty 1-1/4 inch by 1-1/4 inch rails in 14 gauge thickness. This increased rail profile and picket size provide superior resistance to bending and impact compared to residential models. The aluminum construction ensures the gate is completely rust-proof, eliminating the need for constant maintenance and repainting associated with steel gates. The electrostatically applied powder-coated finish provides a tough, durable shell that resists chipping, scratching, and fading from UV exposure, ensuring a professional appearance year-round.
Seamless Perimeter Integration
A key advantage of our commercial fencing system is the ability to create a unified perimeter. These drive gates are designed to hang directly off the end posts of your fencing run, allowing the fence line to continue uninterrupted up to the gate hinge post. This efficient design eliminates the need for separate, disconnected gate posts, which can disrupt the visual flow of the fence line. By utilizing the fence end post as the structural support for the gate, you achieve a continuous, fluid look that enhances the architectural integrity of the property.
End Post Versatility and Hardware

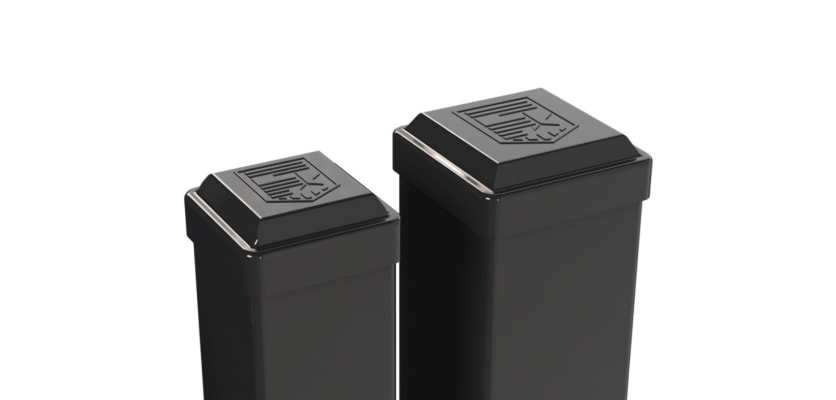

To accommodate the varied ground conditions found on commercial sites, we offer end posts in two distinct styles. For installations in soil or asphalt, our dig-in end posts are designed to be set deep into concrete footings for maximum stability. For existing concrete surfaces like loading docks or walkways, our bolt-down end posts feature a welded flange plate for secure surface mounting. Regarding hardware, we strongly recommend the Signature Hardware Kit for all commercial double drive gates. While the Essential Hardware Hinge kit is available, the Signature kit includes heavy-duty wrap-around hinges that offer superior weight distribution and grip on the post. Crucially, it includes a robust fork latch with a hanger and a drop rod. The drop rod anchors one leaf to the ground, providing a solid backstop for the active leaf to latch against, ensuring secure closure and alignment.
Contact Our Commercial Team
For volume pricing or technical specifications, please contact us at sales@firstfenceusa.com or call (945) 941-2111.
Specifications & Downloads
| Leaf Width | 48" |
| Access Width | 96" |
| Leaf Height | 36" |
| Picket Dimension | 3/4" x 3/4" |
| Rail Dimension | 1-1/4" x 1-1/4" |
| Vertical Frame Dimensions | 2" x 2" |
| Material | Aluminum |
| Finish | Polyester Powder Coated |
| Colour | Black |
| Ground Fixing | Dig In/Bolt Down |
What's Included
| Name | Quantity |
|---|---|
| Gate Leafs | 2 |
Specifications & Downloads
| Leaf Width | 48" |
| Access Width | 96" |
| Leaf Height | 36" |
| Picket Dimension | 3/4" x 3/4" |
| Rail Dimension | 1-1/4" x 1-1/4" |
| Vertical Frame Dimensions | 2" x 2" |
| Material | Aluminum |
| Finish | Polyester Powder Coated |
| Colour | Black |
| Ground Fixing | Dig In/Bolt Down |
What's Included
| Name | Quantity |
|---|---|
| Gate Leafs | 2 |
