AES Tomalok Electric Drop Bolt
Product Description

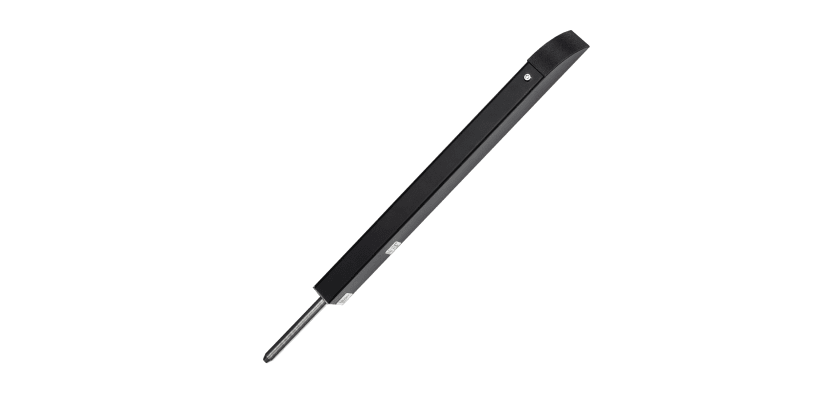

AES Tomalok Electric Drop Bolt
The AES Tomalok is a heavy-duty motorized electric drop bolt designed specifically for securing automatic swing gates. Known for its durable construction and reliable performance, this locking system uses marine-grade materials to ensure long-term operation in demanding outdoor environments.

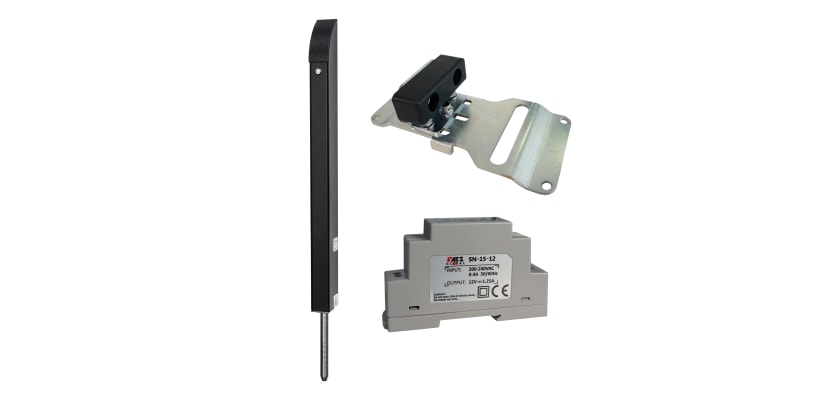

This professional-grade solution provides additional security for gate automation systems by locking gates firmly into the ground once closed. The unit is supplied complete with a ground anchor plate and a 24V DIN rail mount power supply, making it ideal for residential driveways, commercial gates, and high-security access points.
Key Features
- Industry-Leading Throw: Features a 6 inch stroke with a 0.79 inch diameter stainless steel locking pin for maximum gate stability.
- Marine-Grade Construction: Manufactured from BS316 stainless steel with stainless steel roller bearings to prevent rust and corrosion.
- Smart Integration: Connects directly to 24V DC flashing beacons or volt-free courtesy light outputs and supports both constant and pulsing signals.
- Reliable Battery Backup: Integrated high-capacity backup battery provides over 24 hours of standby power and up to 20 operations during power outages.
- Manual Override: Mechanical release pin and key system allow manual operation during maintenance or emergency situations.
- Obstacle Detection: Built-in safety logic immediately stops the bolt if an obstruction is detected during downward movement.
Contact Us
The team is ready to help you plan your project! If you have questions about this or any of our other products, give us a call at (945) 941-2111, message us via our online chat, or email us at sales@firstfenceusa.com.
Specifications & Downloads
| Drop Pin Size | 5.9 Inch |
| Power Supply | 24v DC |
| Battery Back-up | 10-20 Operations |
What's Included
| Name | Quantity |
|---|---|
| Electric Drop Bolt | 1 |
| Ground Anchor Plate | 1 |
| 24v DIN Rail PSU | 1 |
Specifications & Downloads
| Drop Pin Size | 5.9 Inch |
| Power Supply | 24v DC |
| Battery Back-up | 10-20 Operations |
What's Included
| Name | Quantity |
|---|---|
| Electric Drop Bolt | 1 |
| Ground Anchor Plate | 1 |
| 24v DIN Rail PSU | 1 |
