AES EL00IG-RAD-K - Commercial In-Ground E-Loop Presence Kit with E-Trans50 Transceiver
Product Description

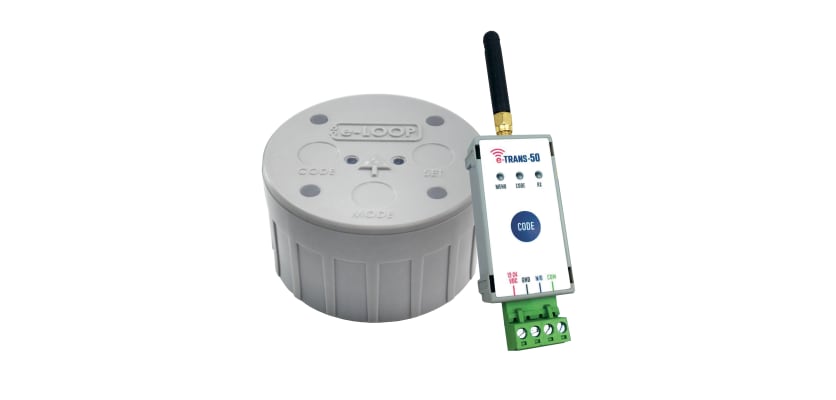

AES EL00IG-RAD-K – Commercial In-Ground E-Loop Presence Kit with E-Trans50 Transceiver
The AES EL00IG-RAD-K Commercial In-Ground E-Loop is a professional-grade wireless vehicle detection kit designed for commercial gate and barrier automation. Unlike traditional wired loops that require extensive trenching, this system installs directly into the pavement, creating a clean, flush-mounted finish that withstands heavy vehicle traffic.
The EL00IG-RAD-K kit provides everything required for reliable wireless vehicle presence detection. Built for commercial environments, it uses advanced radar technology combined with magnetometer sensing to accurately detect vehicles while reducing false triggers from pedestrians or small metallic objects.
When a vehicle is detected, the E-Loop wirelessly transmits signals to an E-Trans transceiver, which controls the gate's operation, providing simple integration into your gate automation systems.
The flush-fit design eliminates trip hazards and offers a neat, aesthetically pleasing finish to the driveway or road surface.
Key Features
- Dual-Sensing Technology: Combines magnetic field detection with radar technology to improve accuracy and reliably detect stationary vehicles.
- In-Ground Installation: Recesses into the driveway (approximately 3.5 inches deep) for a flush, low-profile installation.
- Long Battery Life: Powered by a high-capacity 14500 mA lithium battery designed to deliver approximately 6 to 10 years of operation.
- Secure Wireless Communication: Uses 128-bit AES encryption to protect communication between the e-Loop sensor and the transceiver.
- Heavy-Duty Construction: IP68-rated waterproof housing with a static load capacity of up to 20,000 lbs (10 tonnes).
- Fast Installation: Installs in under 30 minutes using an 89 mm (3.5 in) core-drilled hole.
- Durability: Designed for demanding environments which combined with the flush-fit finish makes this ideal for busy car parks, loading bays and commercial entrances..
Contact Us
The team is ready to help you plan your project! If you have questions about this or any of our other products, give us a call at (945) 941-2111, message us via our online chat, or email us at sales@firstfenceusa.com.
Specifications & Downloads
| Unit Dimensions | 2.1in X 2.1in X 3.4in |
| Static Load | 20,000 lbs |
| Installation Type | Recess into Driveway |
| IP Rating | IP68 |
What's Included
| Name | Quantity |
|---|---|
| E-Loop Commercial | 1 |
| Single Channel Transceiver | 1 |
| Magnet | 1 |
Specifications & Downloads
| Unit Dimensions | 2.1in X 2.1in X 3.4in |
| Static Load | 20,000 lbs |
| Installation Type | Recess into Driveway |
| IP Rating | IP68 |
What's Included
| Name | Quantity |
|---|---|
| E-Loop Commercial | 1 |
| Single Channel Transceiver | 1 |
| Magnet | 1 |
