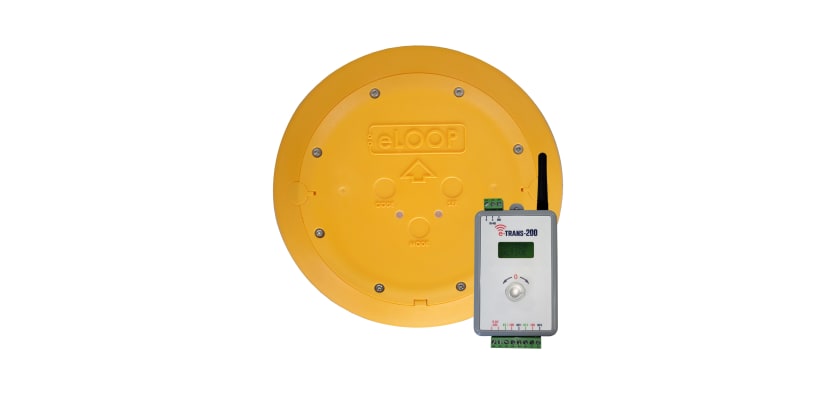

AES EL00C-RAD-KLT - Commercial E-Loop Presence Kit with E-Trans200 Transceiver
Product Description
AES EL00C-RAD-KLT – Commercial E-Loop Presence Kit with E-Trans200 Transceiver
The AES EL00C-RAD-KLT Commercial E-Loop is a professional-grade wireless vehicle detection system designed to replace traditional wired ground loops. By utilizing advanced magnetometer sensors, it eliminates the need for concrete cutting, making it an ideal solution for commercial gates, driveways, and high-traffic access control points.
The EL00C-RAD-KLT is a comprehensive kit that provides everything needed for a seamless wireless exit or presence detection setup. This commercial-spec model is engineered for durability and precision, using radar technology to confirm vehicle presence and reduce false triggers from pedestrians or small metallic objects.
When a vehicle is detected, the E-Loop wirelessly transmits signals to an E-Trans transceiver, which controls the gate's operation, providing simple integration into your gate automation systems.
Combining the EL00C and the E-Trans 200 offers a unique lock-out function and allows for both free exit and safety presence protection mode at the same time by connecting multiple devices.
Key Features
- Radar & Magnetometer Detection: Uses a dual-sensor system to deliver high accuracy while minimizing false activations.
- Wireless Installation: Eliminates the need for saw-cutting asphalt or trenching. The E-Loop communicates wirelessly with the included transceiver.
- Commercial Durability: The sensor pod is designed to withstand heavy vehicle loads and harsh outdoor environments.
- Easy Integration: Compatible with most gate operators and commercial door controllers using the included E-Trans200 transceiver.
- Long Battery Life: Powered by high-capacity lithium batteries designed to provide years of reliable operation.
- Secure Communication: Ensures reliability with the 128-bit AES encryption and a long transmission range.
Contact Us
The team is ready to help you plan your project! If you have questions about this or any of our other products, give us a call at (945) 941-2111, message us via our online chat, or email us at sales@firstfenceusa.com.
Specifications & Downloads
| Unit Dimensions | 8.6in X 8.6in X 1.1in |
| Static Load | 20,000 lbs |
| Installation Type | Surface-Mounted |
| IP Rating | IP68 |
What's Included
| Name | Quantity |
|---|---|
| E-Loop Commercial | 1 |
| Single Channel Transceiver | 1 |
| Fixing Bolts | 2 |
| Magnet | 1 |
Specifications & Downloads
| Unit Dimensions | 8.6in X 8.6in X 1.1in |
| Static Load | 20,000 lbs |
| Installation Type | Surface-Mounted |
| IP Rating | IP68 |
What's Included
| Name | Quantity |
|---|---|
| E-Loop Commercial | 1 |
| Single Channel Transceiver | 1 |
| Fixing Bolts | 2 |
| Magnet | 1 |
